Nozzle for PVA glues

PIZZI glue guns, standard universal pointed nozzles and its corresponding guide​

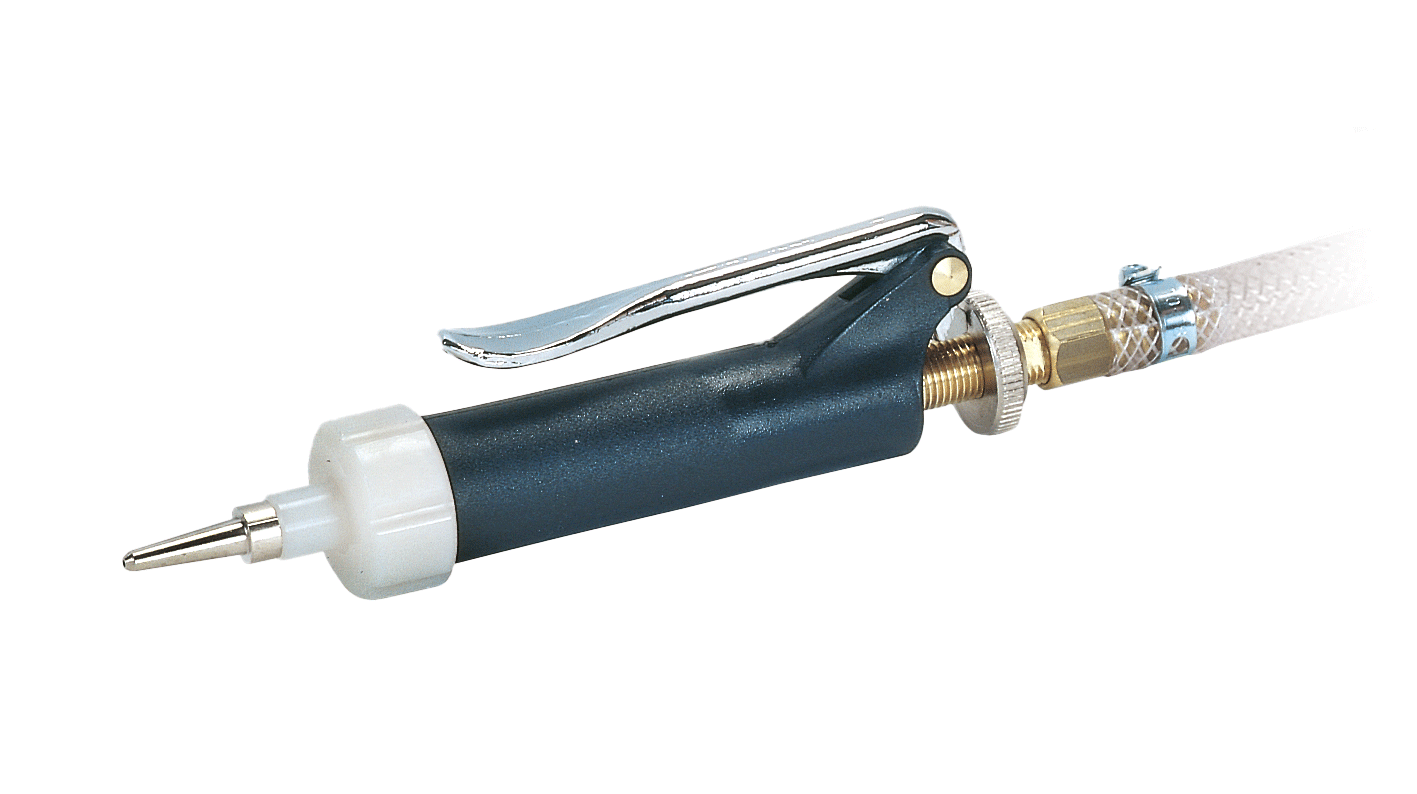

GLUE GUN WITH STRAIGHT GRIP

0002

cod. 0002

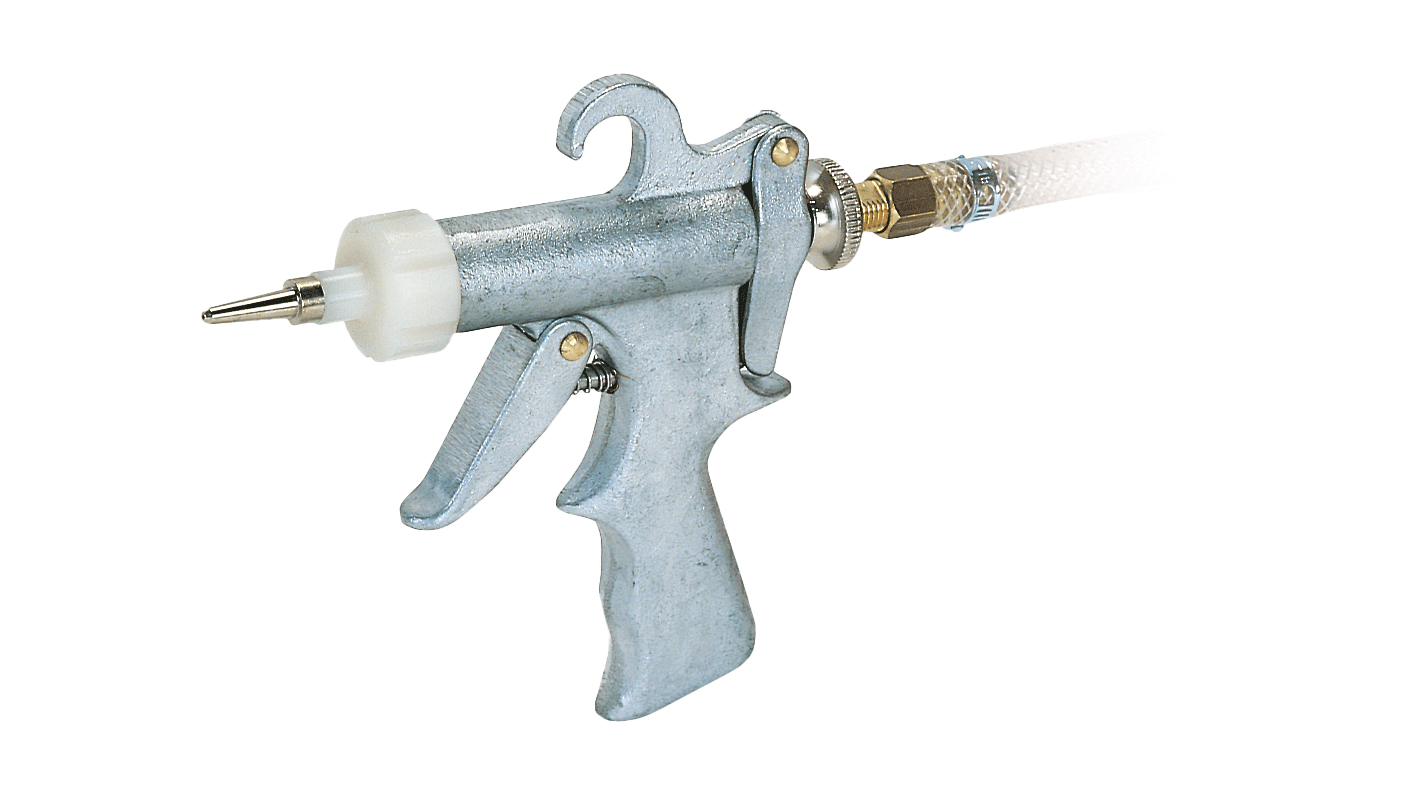

GLUE GUN WITH ANATOMIC GRIP

9902

cod. 9902

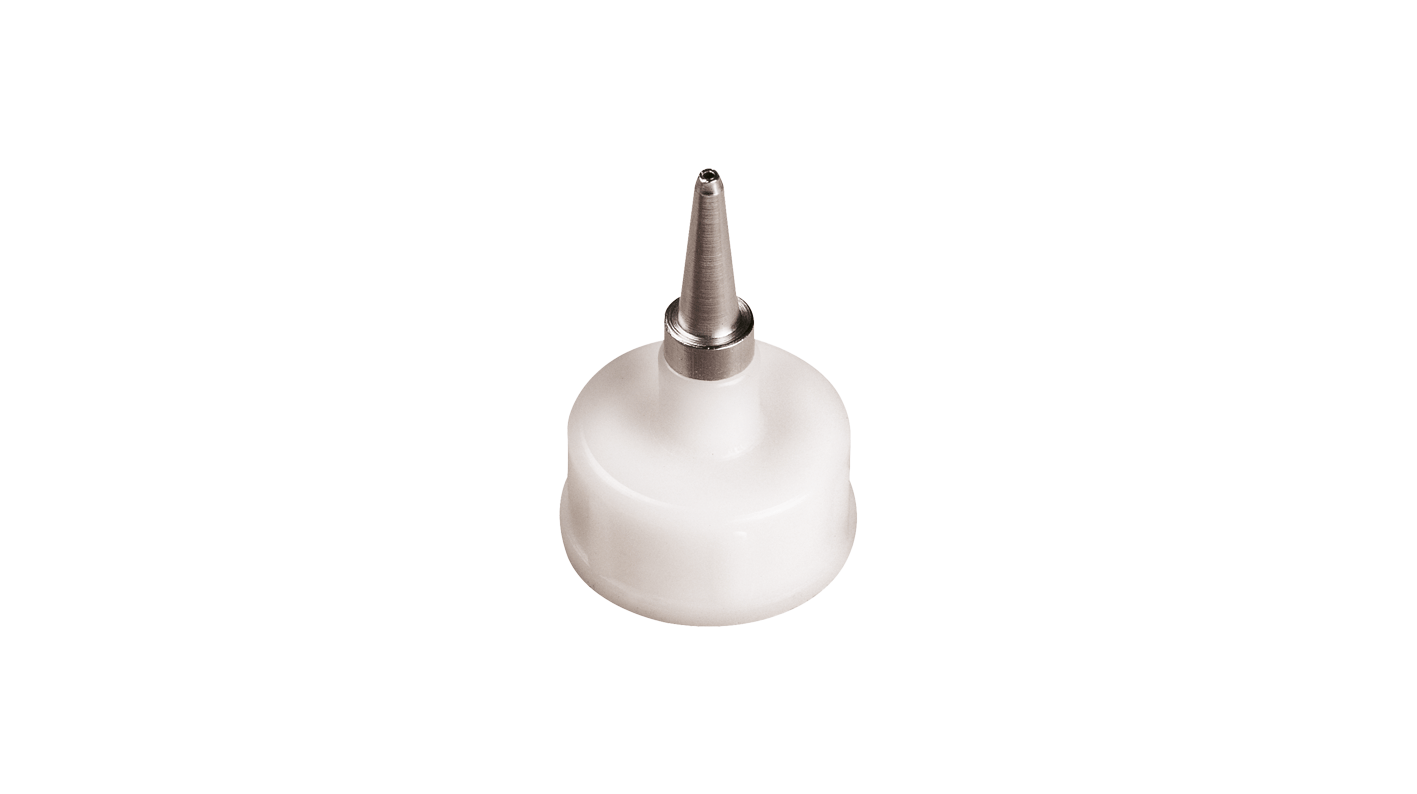

UNIVERSAL PONTED NOZZLE - HOLE 1.5

0003

cod. 0003

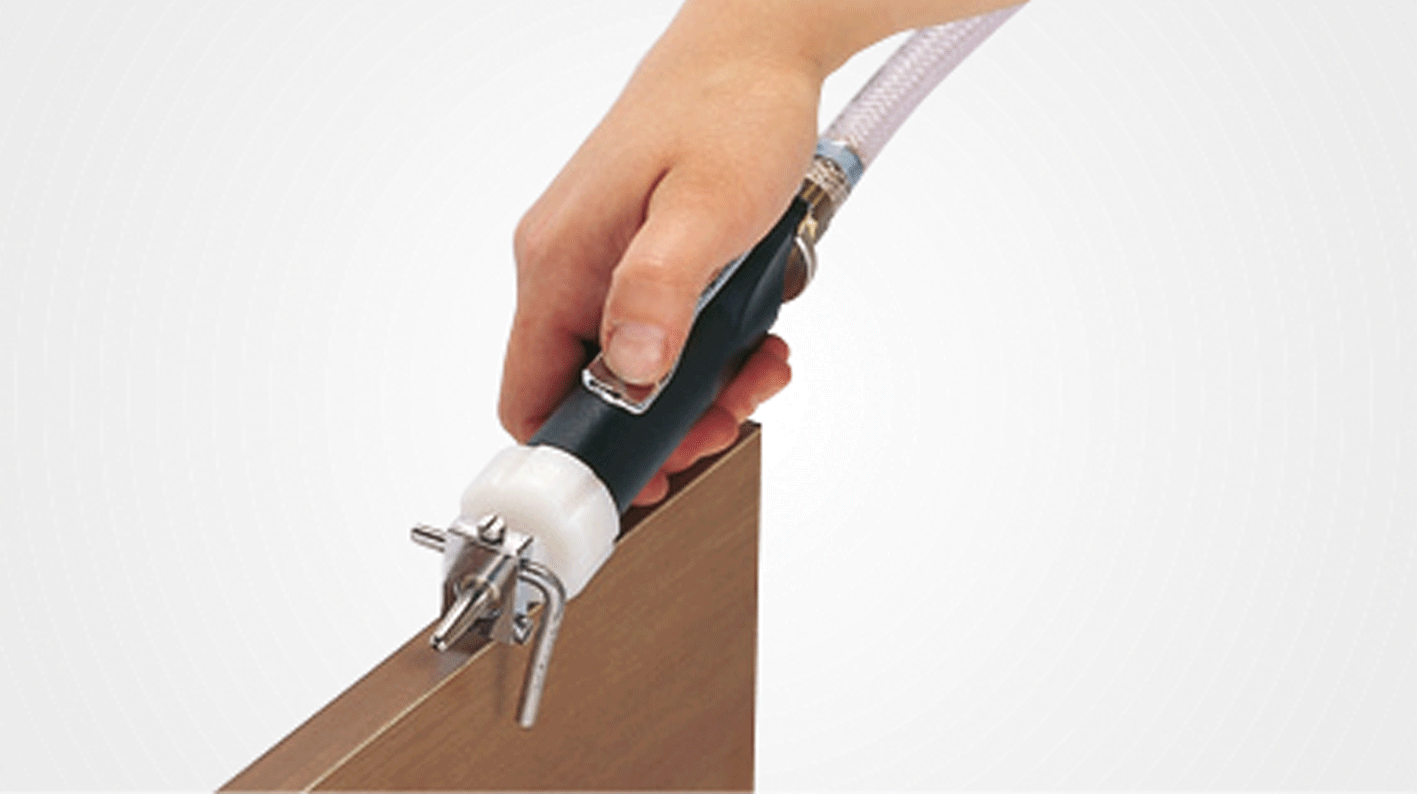

GUIDE FOR UNIVERSAL NOZZLE

0059

cod. 0059

Panel and cabinet processing, drillings and dowel holes

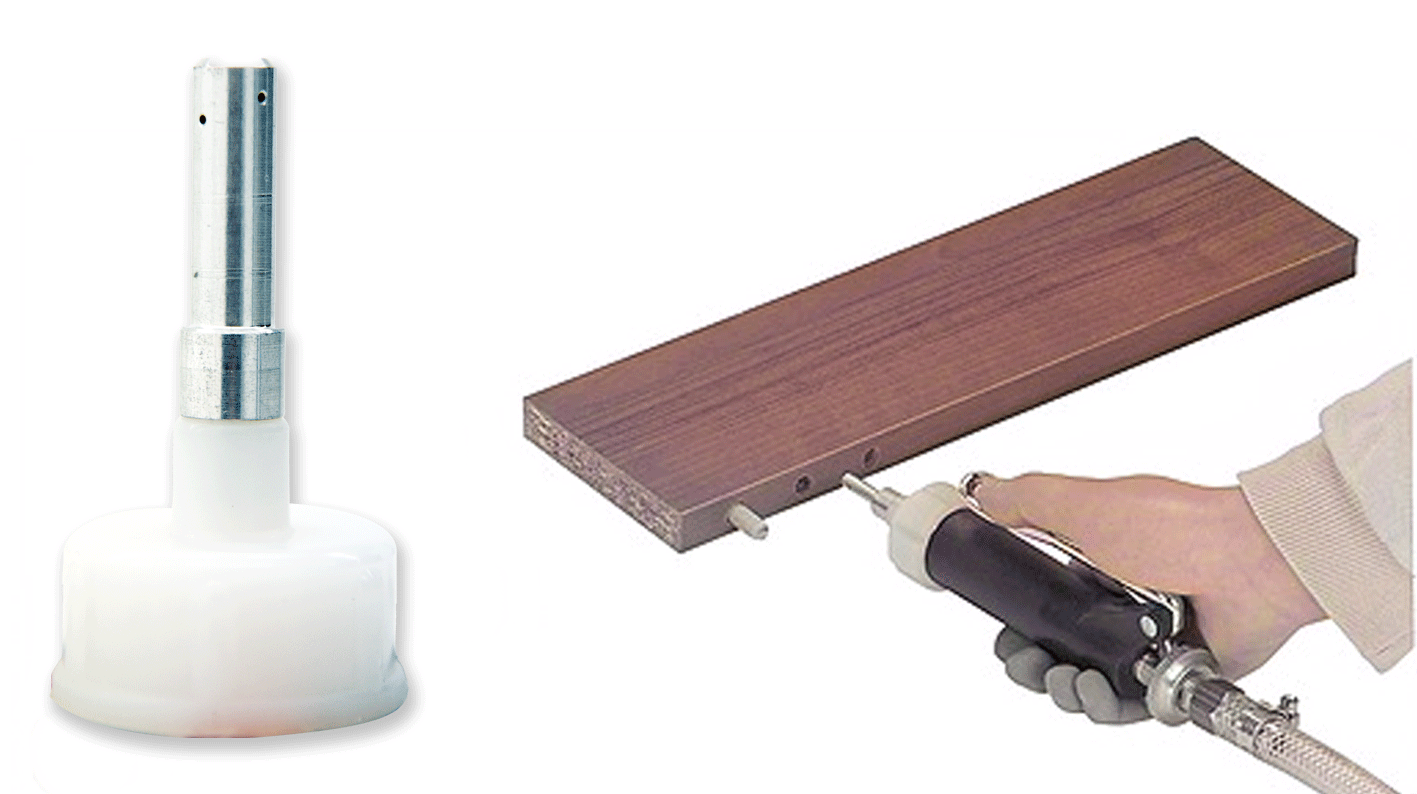

SINGLE DOWEL NOZZLE

0004-0005-0006-0007 single dowel nozzle

cod. 0004 (Ø6) – 6×20 mm
cod. 0005 (Ø8) – 8×25 mm
cod. 0006 (Ø10)
– 10×30 mm
cod. 0007 (Ø12)
– 12×40 mm

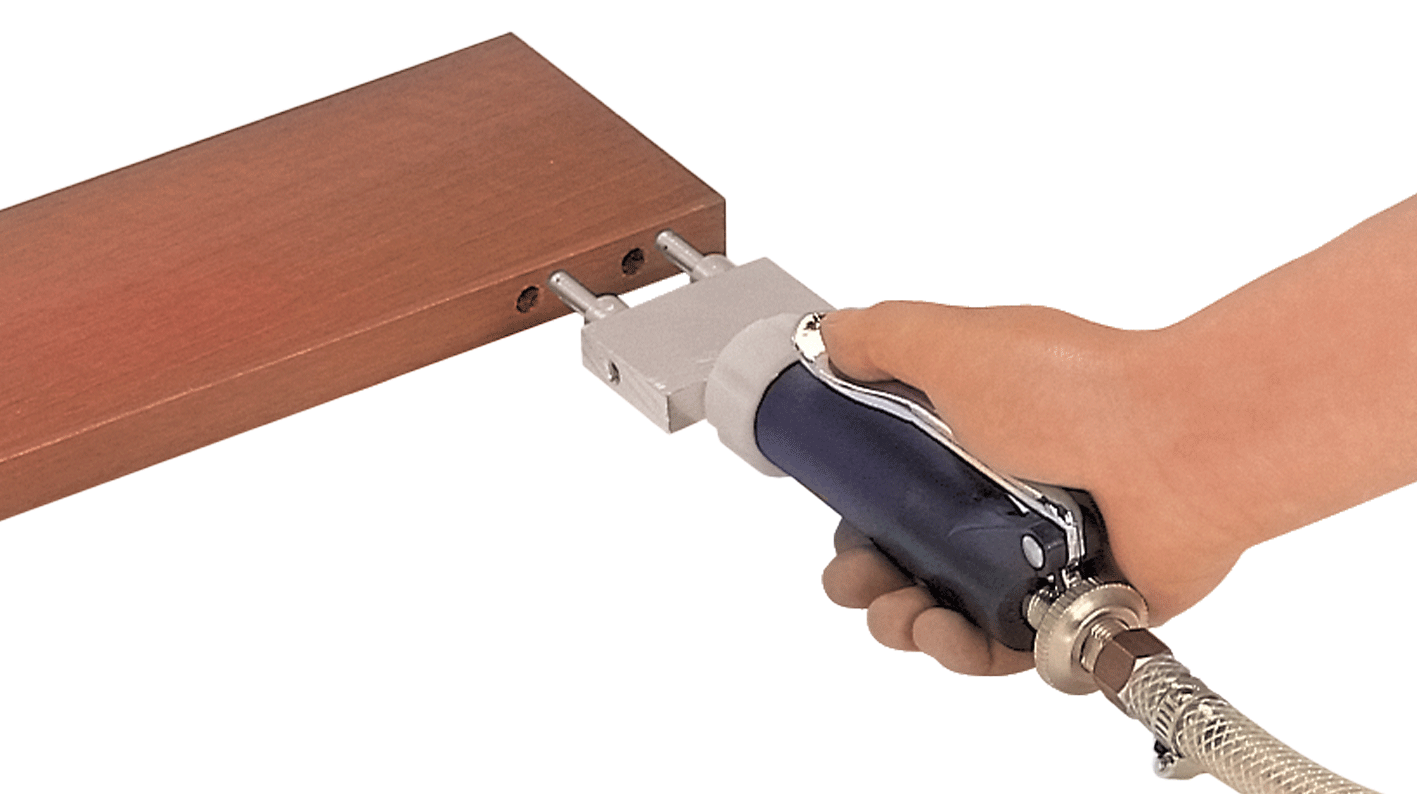

DUAL DOWEL NOZZLE, CENTRE DISTANCE 32

0008-0009-00010-0011 dual dowel nozzle

cod. 0008 (Ø6) – 6×20 mm
cod. 0009 (Ø8) – 8×25 mm
cod. 0010 (Ø10)
– 10×30 mm
cod. 0011 (Ø12)
– 12×40 mm

TRIPLE DOWEL NOZZLE, CENTRE DISTANCE 32

0012-0013-0014-0015 triple dowel nozzle

cod. 0012 (Ø6) – 6×20 mm
cod. 0013 (Ø8) – 8×25 mm
cod. 0014 (Ø10)
– 10×30 mm
cod. 0015 (Ø12)
– 12×40 mm

Panel and cabinet processing, grooves, edges, dados joints, biscuits joints

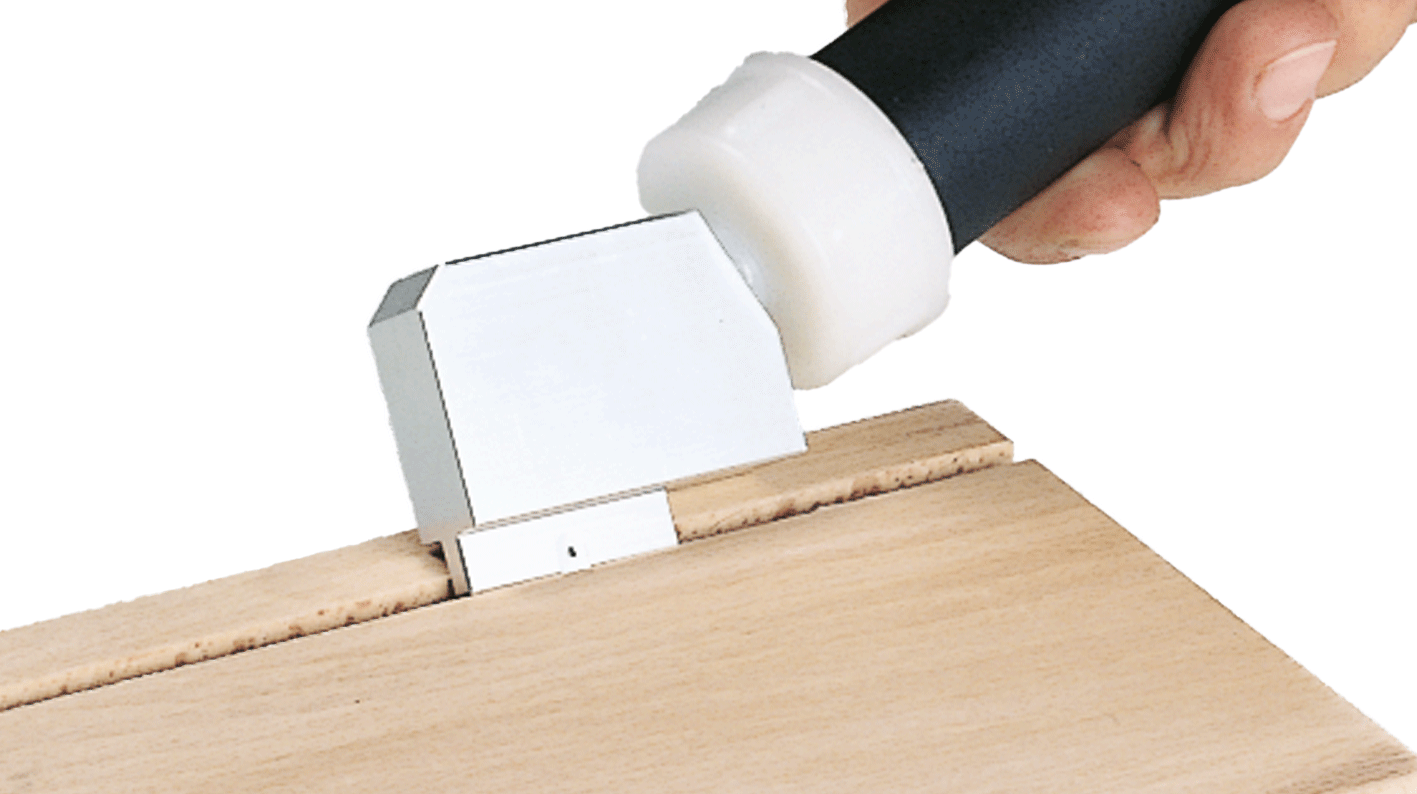

NOZZLE FOR GROOVES

0024-0025-0026-0027-0028 nozzle for grooves
cod. 0024 – 4×30 mm
cod. 0025 – 5×30 mm
cod. 0026 – 6×30 mm
cod. 0027
– 8×30 mm
cod. 0028
– 10×30 mm

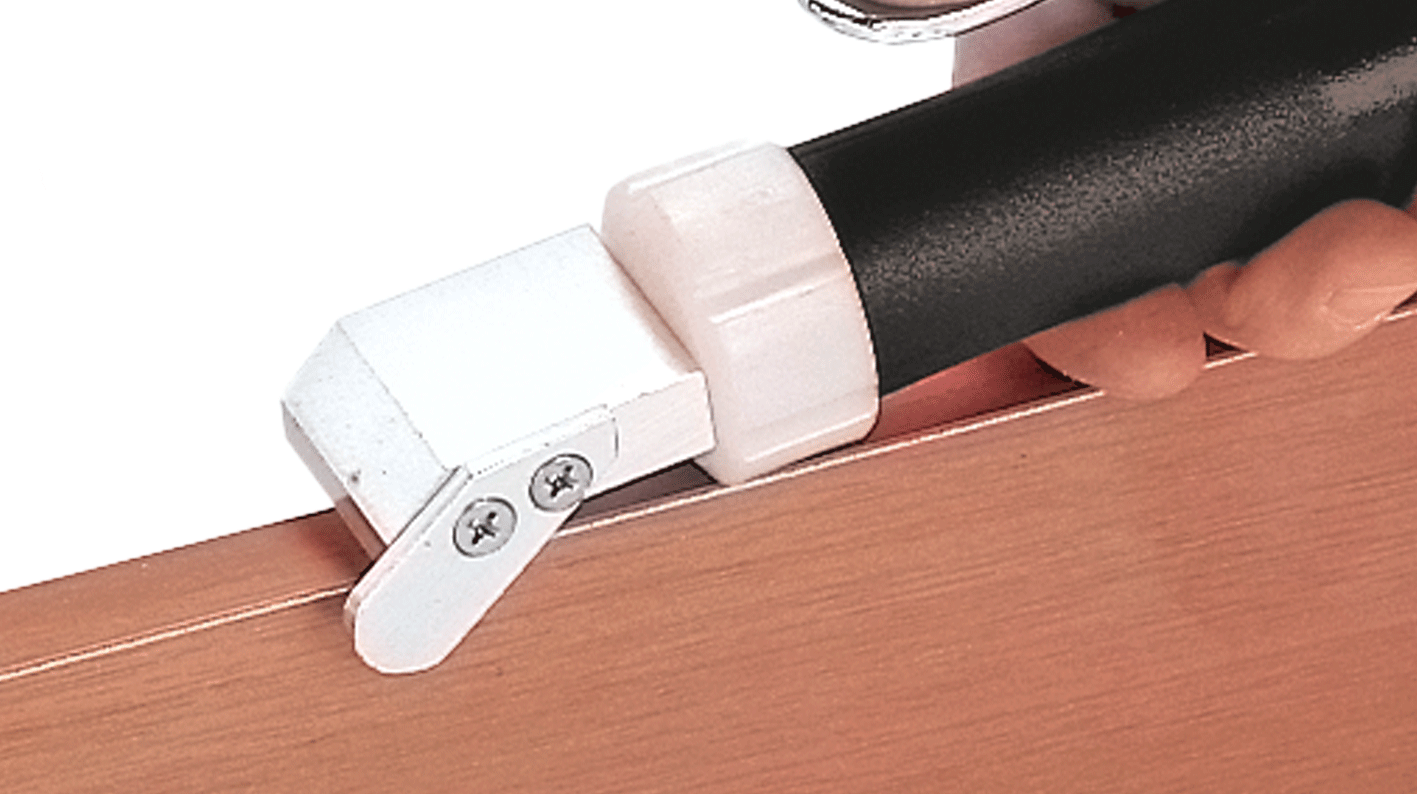

ADJUSTABLE NOZZLE
FOR EDGES

0016-0017 adjustable nozzle

cod. 0016 – 10/30 mm
cod. 0017 – 20/40 mm
cod. 9918 – 40/60 mm

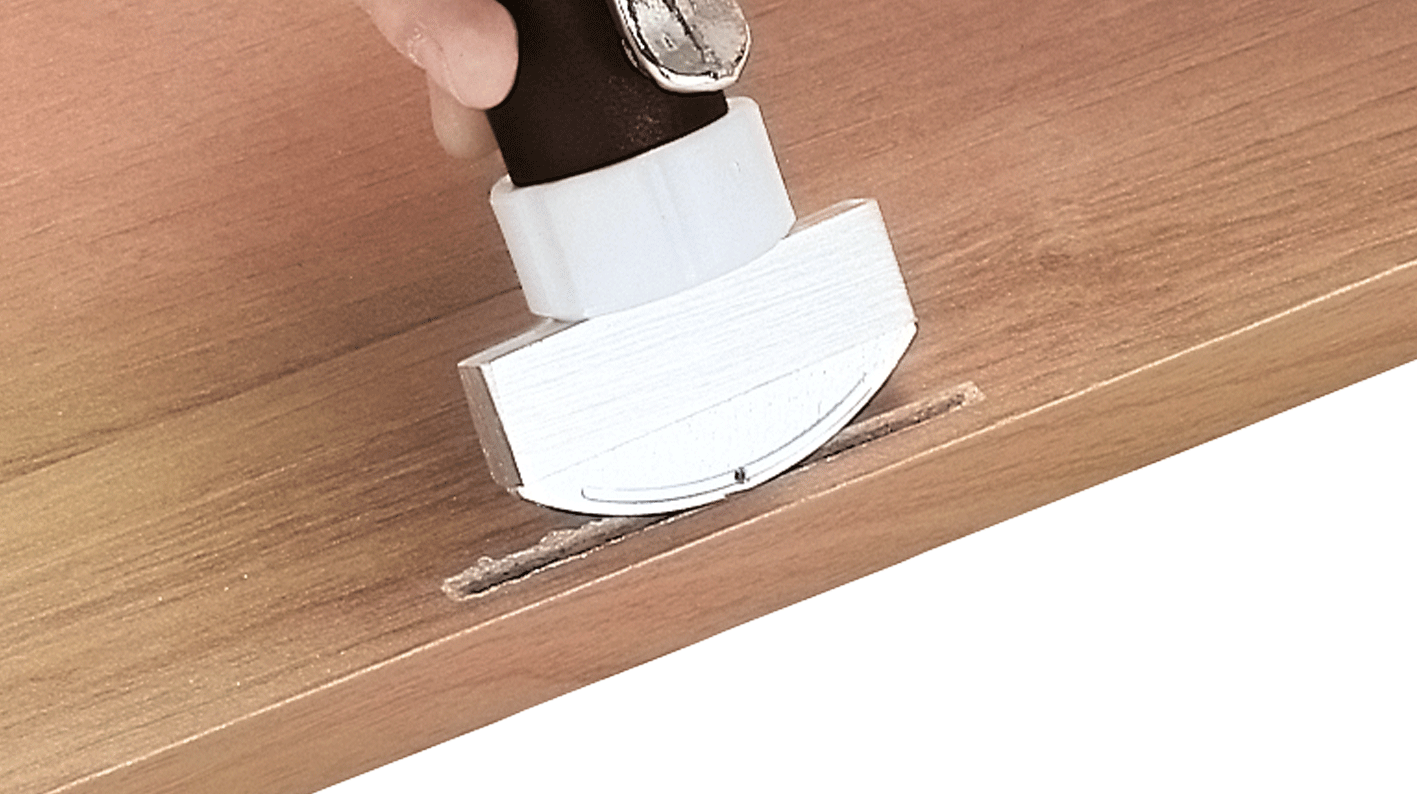

NOZZLE FOR BISCUIT JOINT

cod. 0054

Specific nozzles for surfaces, surface repairs, domino joint, adjustable glue dispensing cylinders and glue dispencing cylinders with rubber rollers

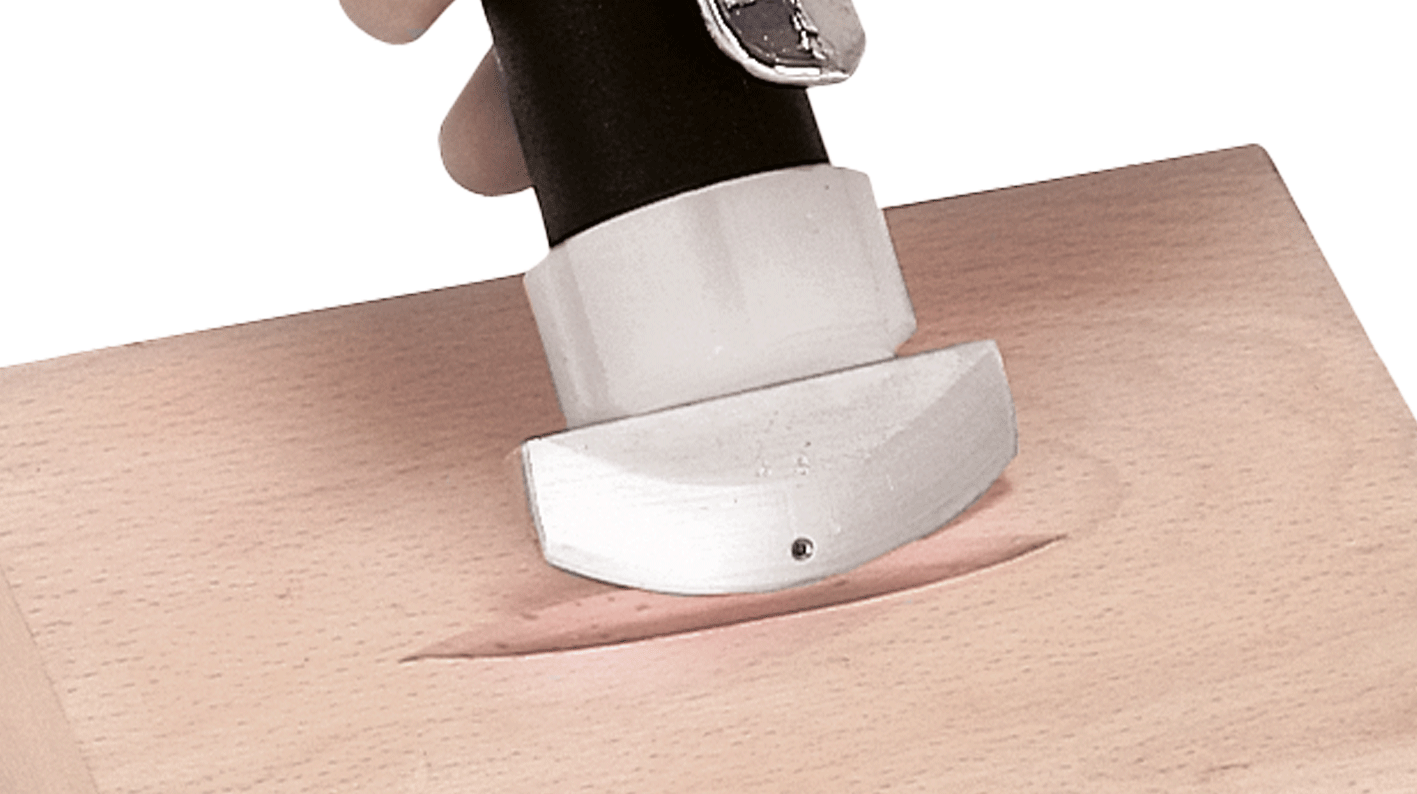

NOZZLE FOR WOOD REPAIRS

0154 nozzle for wood repairs

cod. 0154 – 4×30 mm

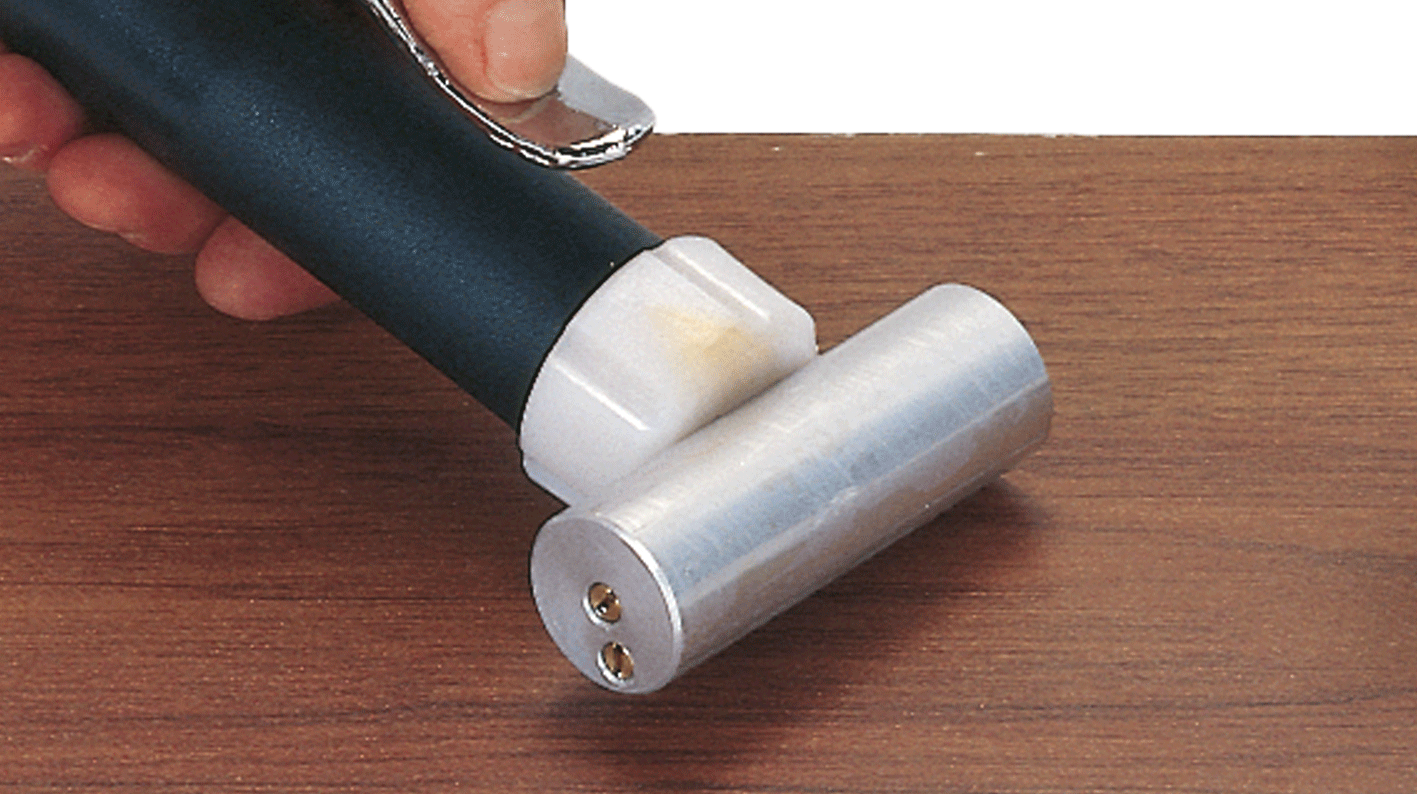

GLUING CYLINDER

0031-0032-0033 gluing cylinder

cod. 0031 – 72 mm
cod. 0032 – 120 mm
cod. 0033 – 180 mm

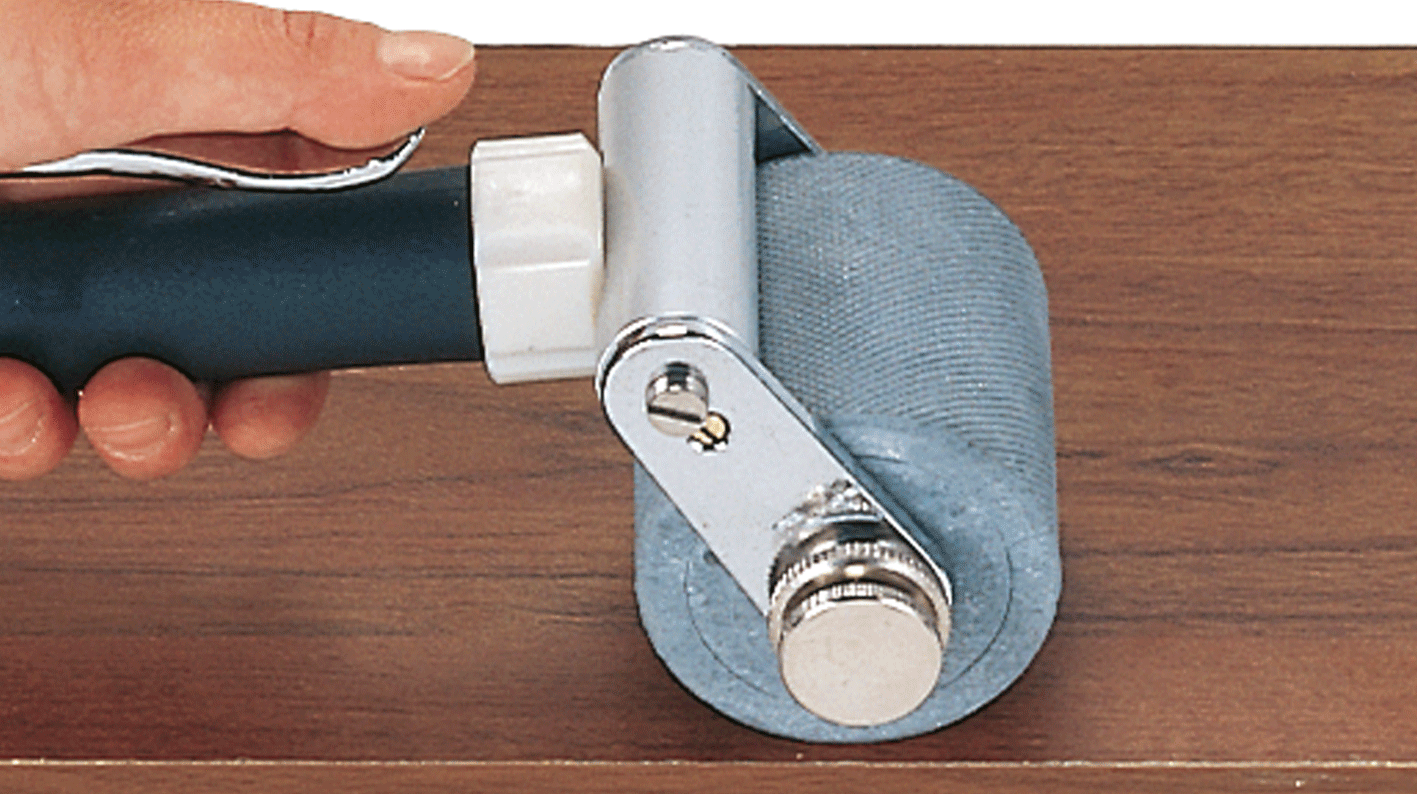

GLUING CYLINDER
WITH RUBBER ROLLER

0034-0035-0036gluing cylinder with rubber roller

cod. 0034 – 72 mm
cod. 0035 – 120 mm
cod. 0036 – 180 mm

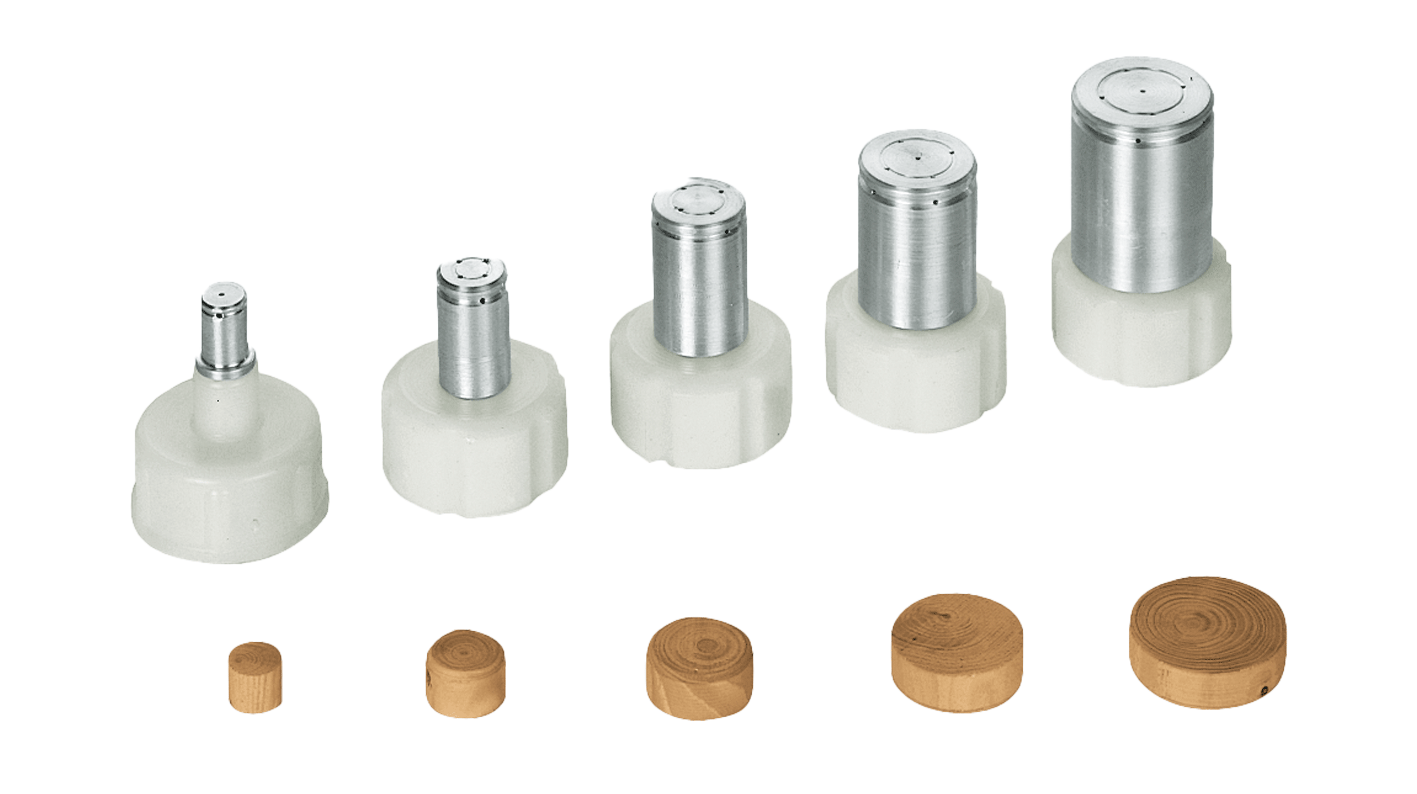

NOZZLE FOR WOOD REPAIRS

0105-0106-0107-0108 nozzle for wood repairs
cod. 0105 – ø 10
cod.0106 – ø 15
cod.0107 – ø 20
cod.0108 – ø 25
cod.0109 – ø 30

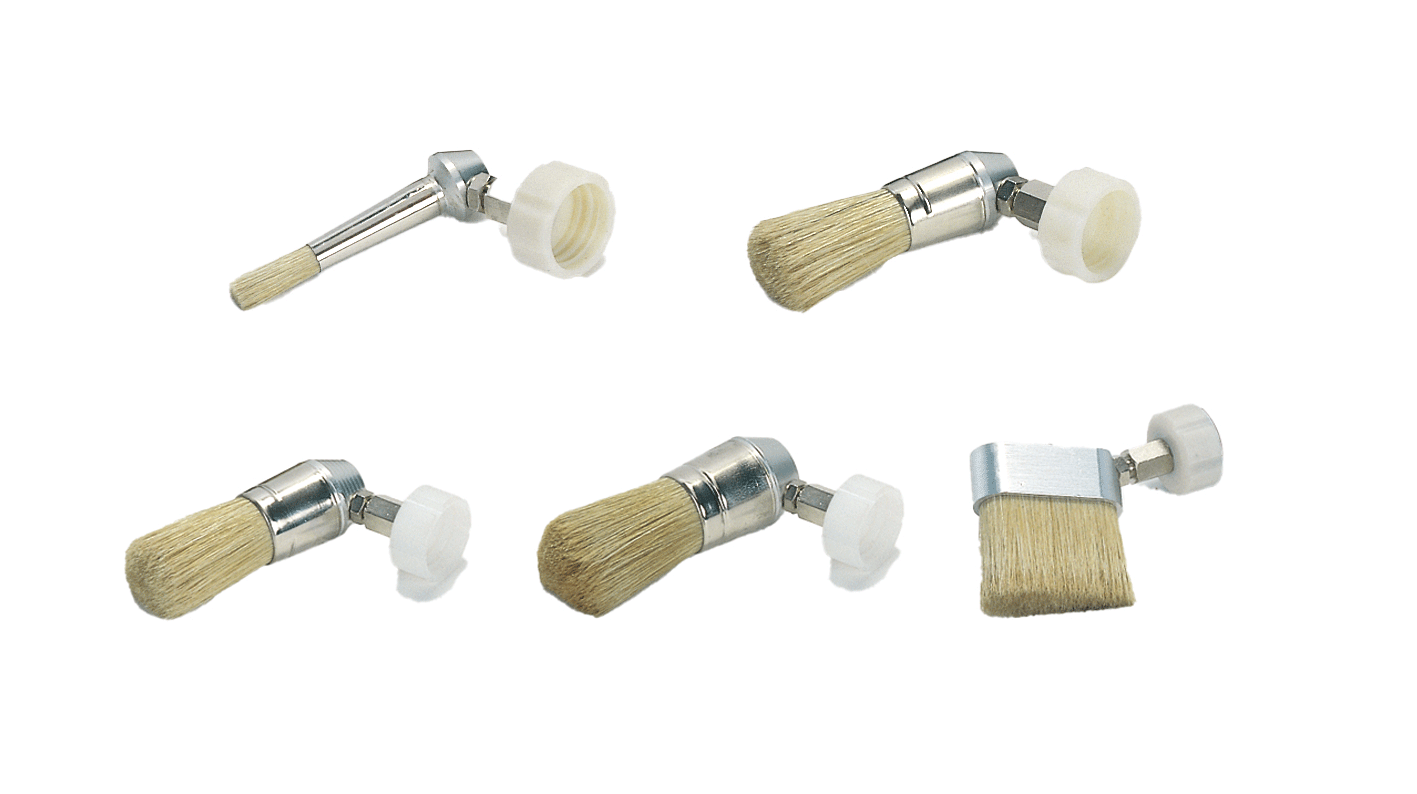

BRUSH NOZZLE

0045-0046-0047-0048-0049 brush nozzle
cod. 0045 – ø 10
cod. 0046 – ø 15
cod. 0047 – ø 20
cod. 0048 – ø 25
cod. 0049 – ø 30

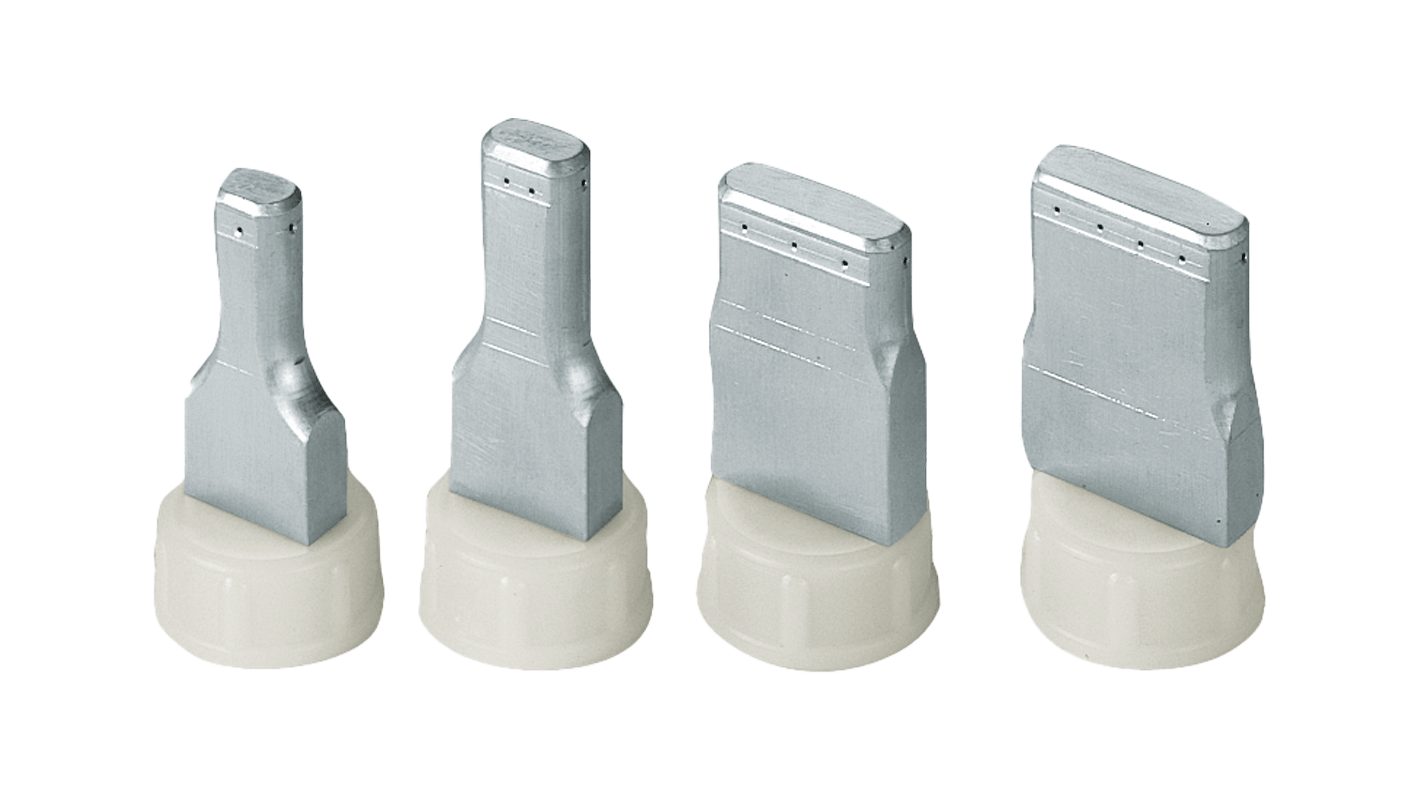

NOZZLE FOR SLOTS

0105-0106-0107-0108 nozzle for slots

cod. 0118 – 20 mm slot
cod. 0119 – 30 mm slot
cod. 0120 – 40 mm slot
cod. 0121 – 50 mm slot

Processing of doors, windows, wooden frames, components for wood building and housing, tenon-mortise joints

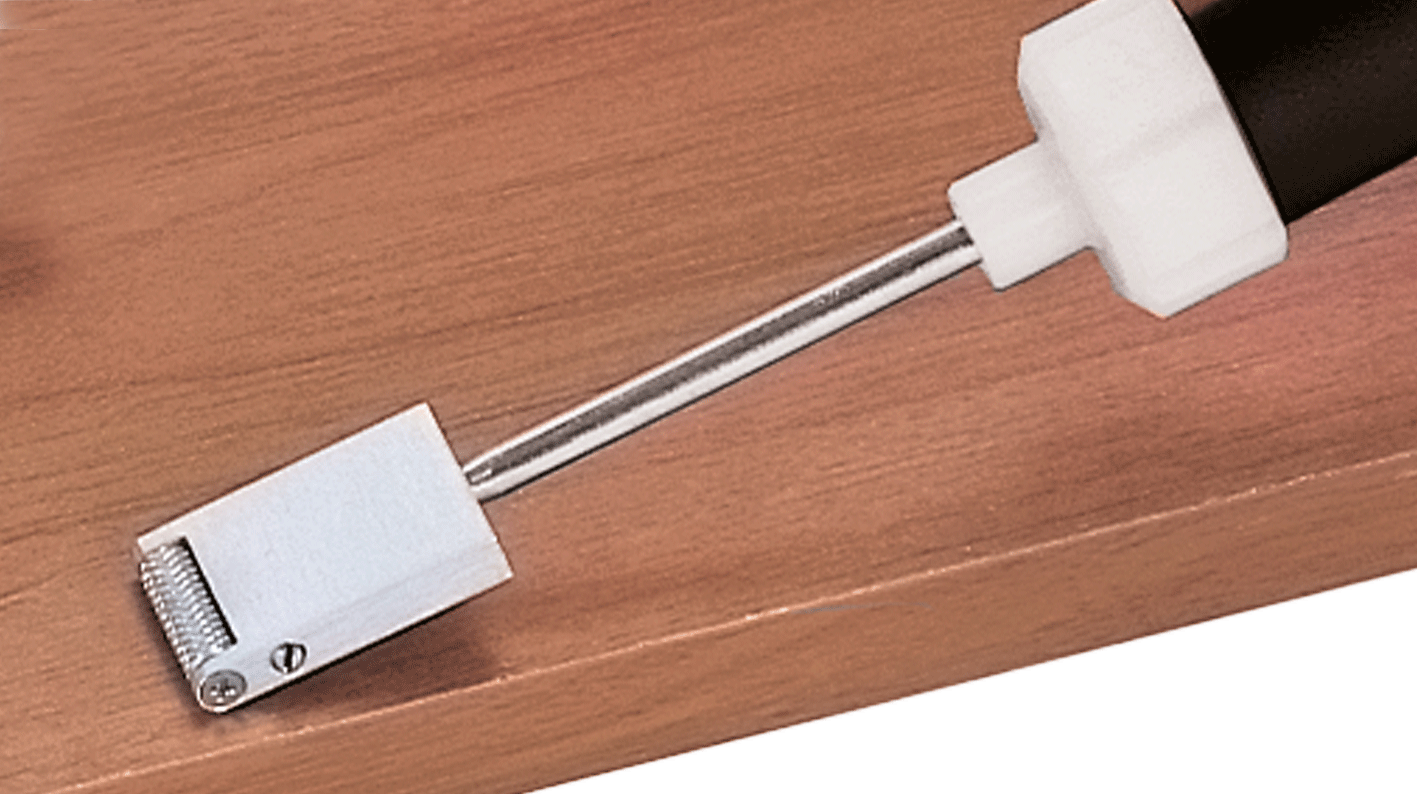

ROLLERS SPATULA FOR SLOT

roller spatula for slot 0095-0195-0295-0395-0495

cod. 0295 – 30 mm slot
cod. 0195 – 40 mm slot
cod. 0095 – 50 mm slot
cod. 0395 – 60 mm slot
cod. 0495 – 70 mm slot

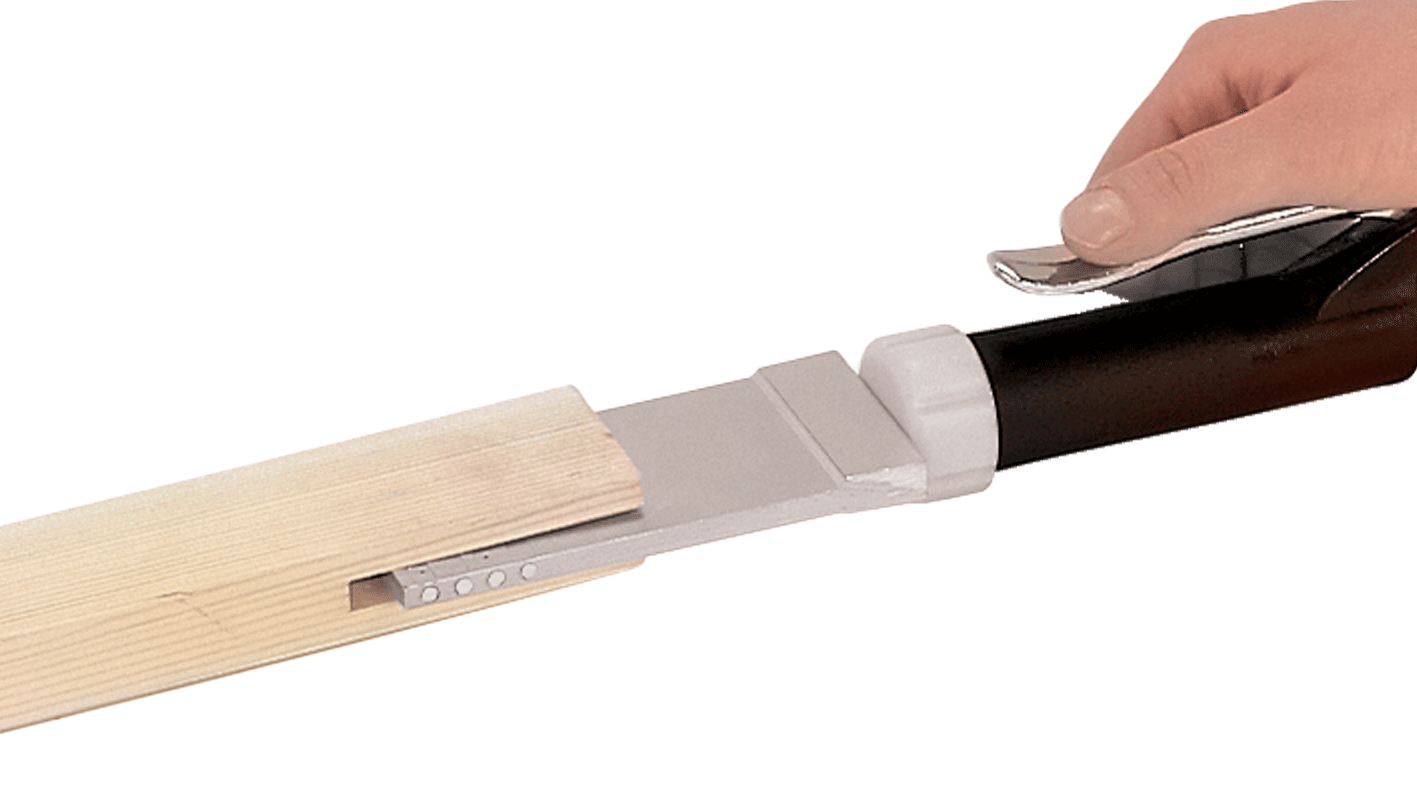

ONE SPATULA NOZZLE WITH GLUE DELIVERY ON TWO SIDES

0018-0019-0020

cod. 0018 – 30X100x6 mm
cod. 0019 – 40x100x6 mm
cod. 0020 – 50x100x6 mm

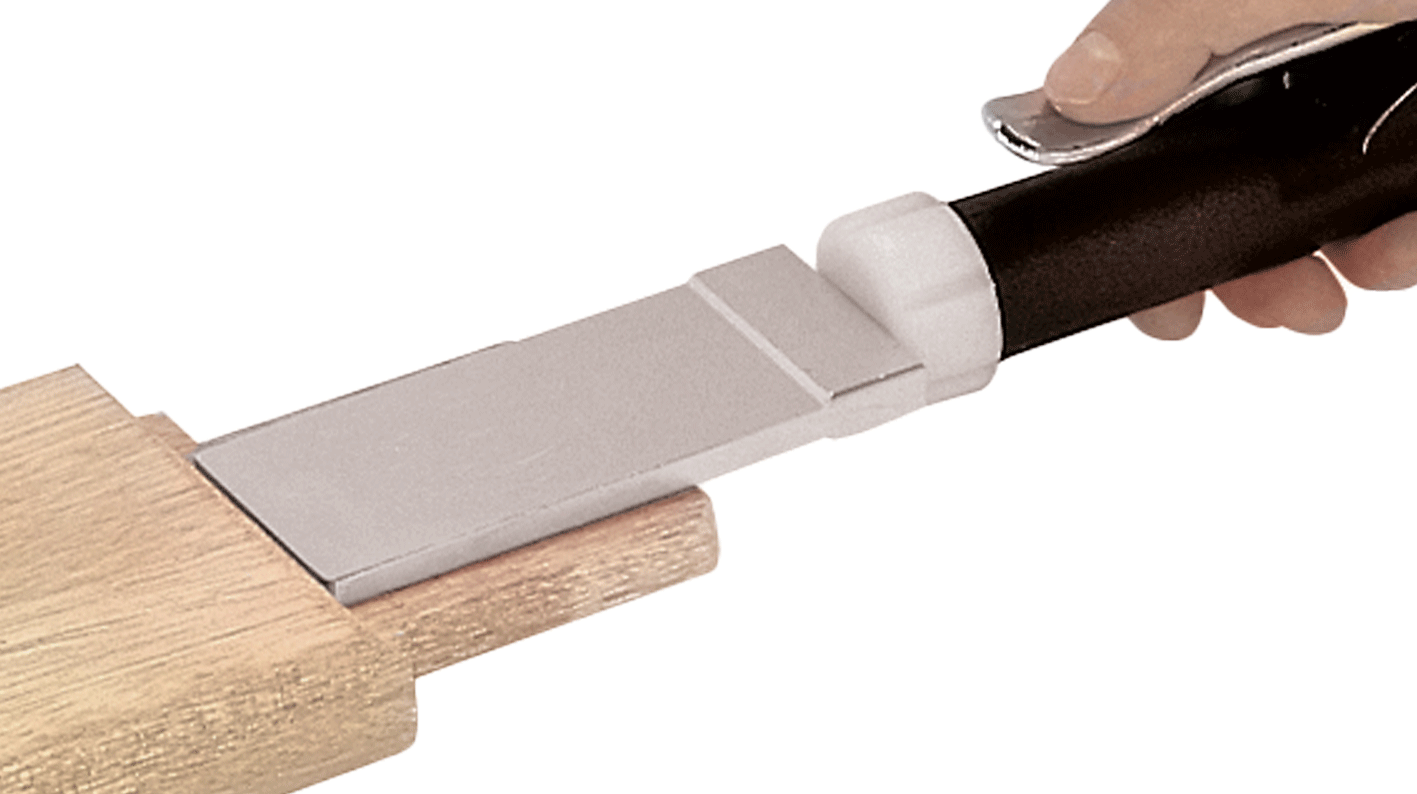

ONE SPATULA NOZZLE WITH GLUE DELIVERY ON ONE SIDES

0021-0022-0023

cod. 0021 – 30X100x6 mm
cod. 0022 – 40x100x6 mm
cod. 0023 – 50x100x6 mm

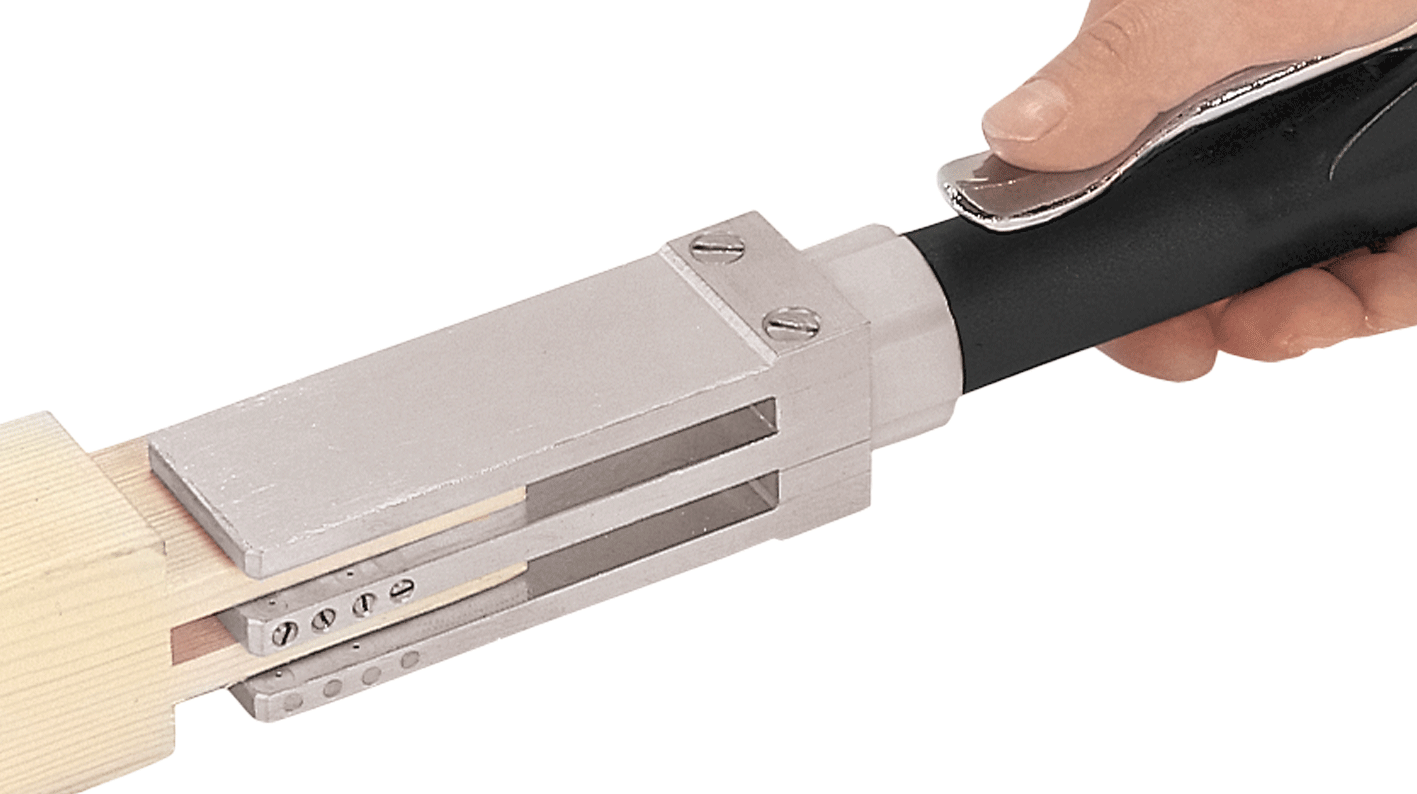

THREE SPATULAS TENON NOZZLE WITH GLUE DELIVERY ON FOUR SIDES

0053

cod. 0053 – 40x100x6 mm
cod. 0053S as cod. 0053 but for special dimensions

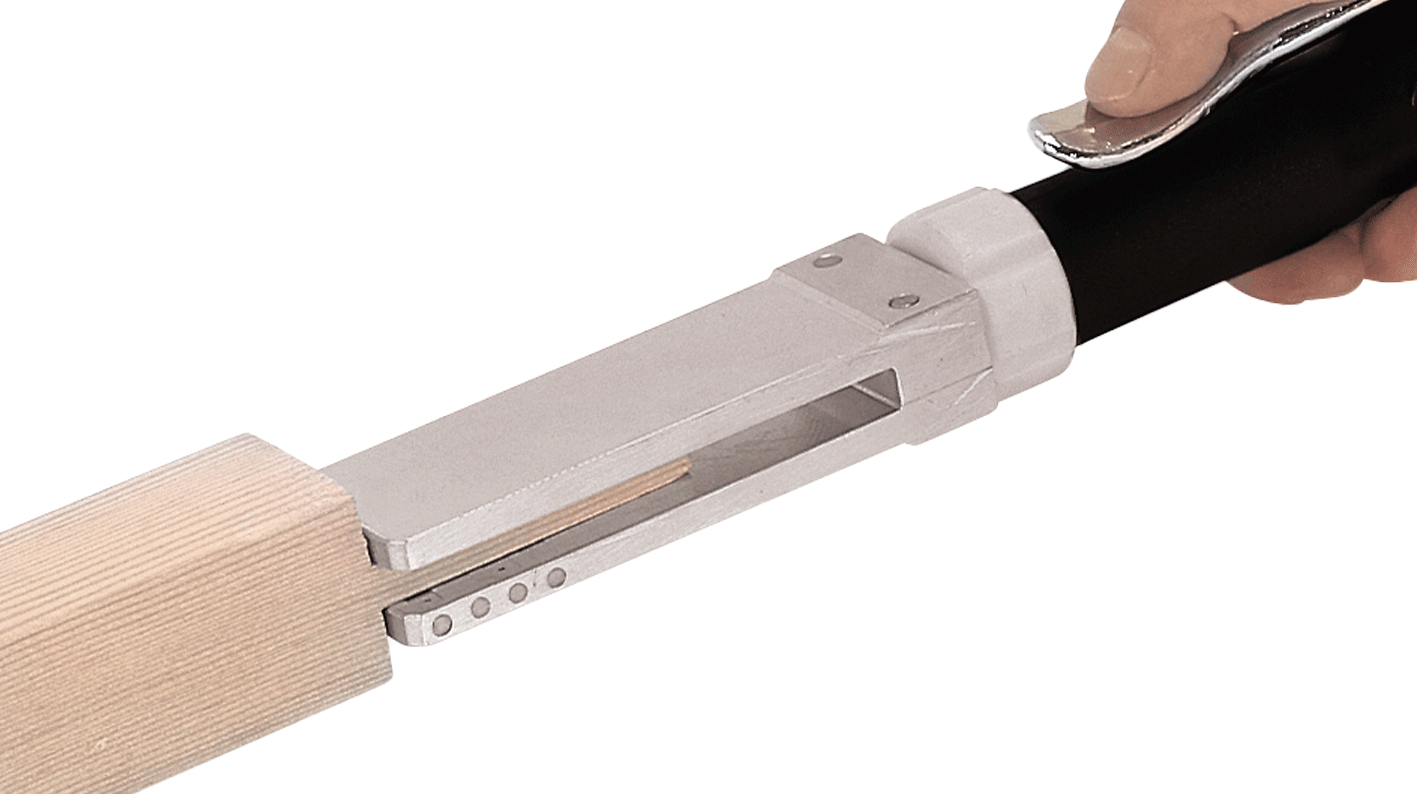

TWO SPATULAS TENON NOZZLE WITH GLUE DELIVERY ON TWO SIDES

0078

cod. 0078 – 40x100x6 mm
cod. 0078S as cod. 0078 but for special dimensions

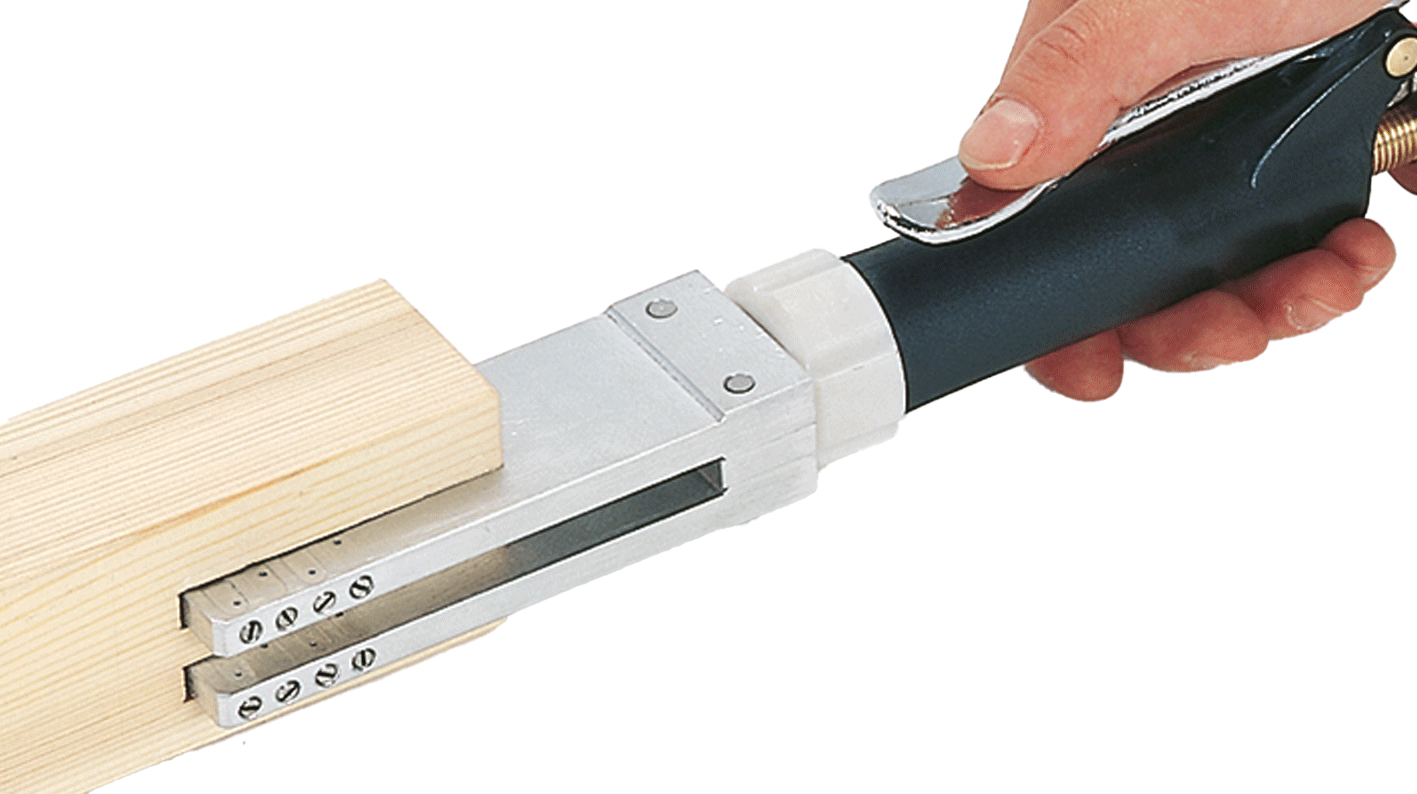

THREE SPATULAS MORTISE NOZZLE WITH GLUE DELIVERY ON FOUR SIDES

cod. 0079 – 40x100x6 mm
cod. 0078S as cod. 0079 but for special dimensions

Finger joint and useful accessories

FINGER JOINT NOZZLE

0029 - finger joint nozzle

cod. 0029
cod. 0029S as cod. 0029 but for special dimensions

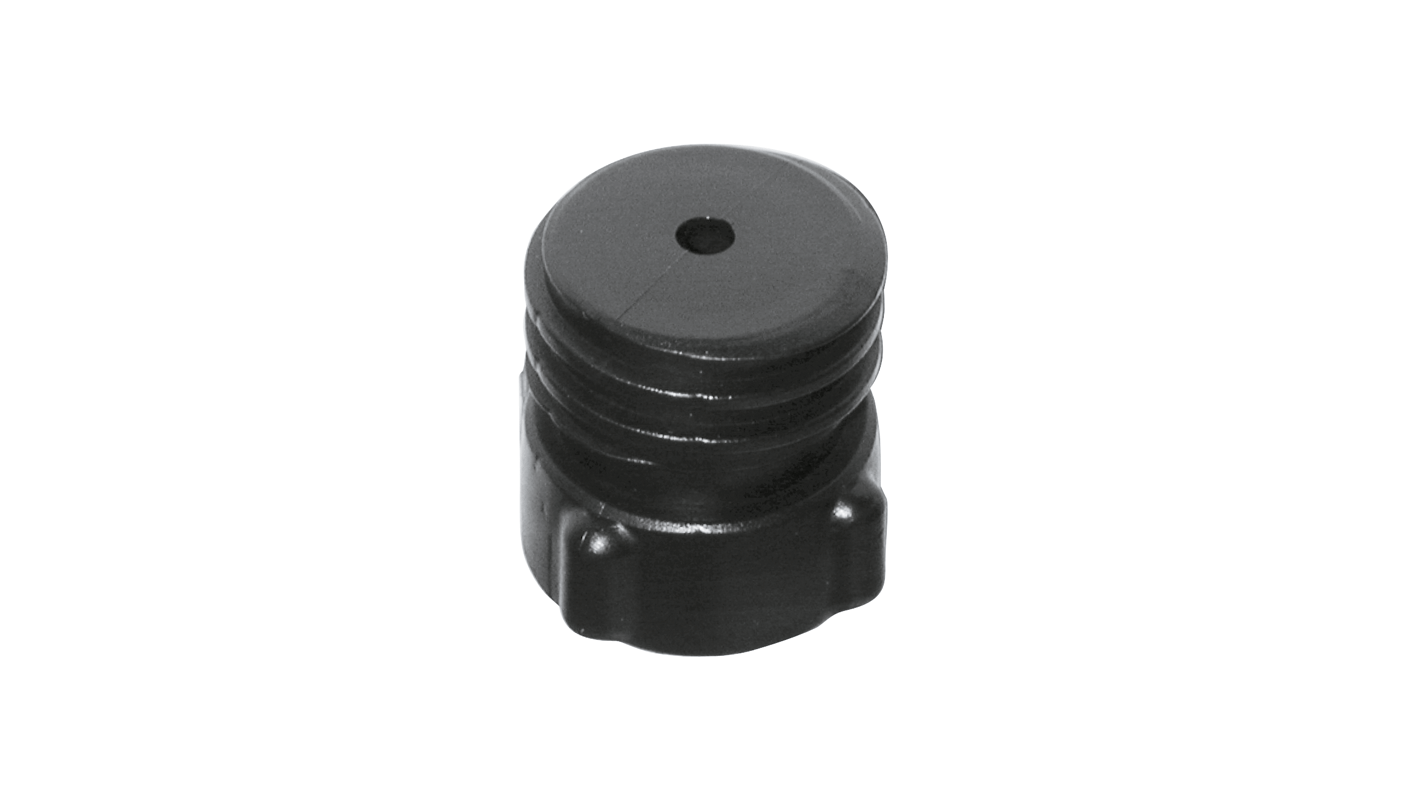

3/4 TAP FITTING FOR NOZZLE WASH OFF

0044 - 3/4 tap fitting for nozzles wash off

cod. 0044

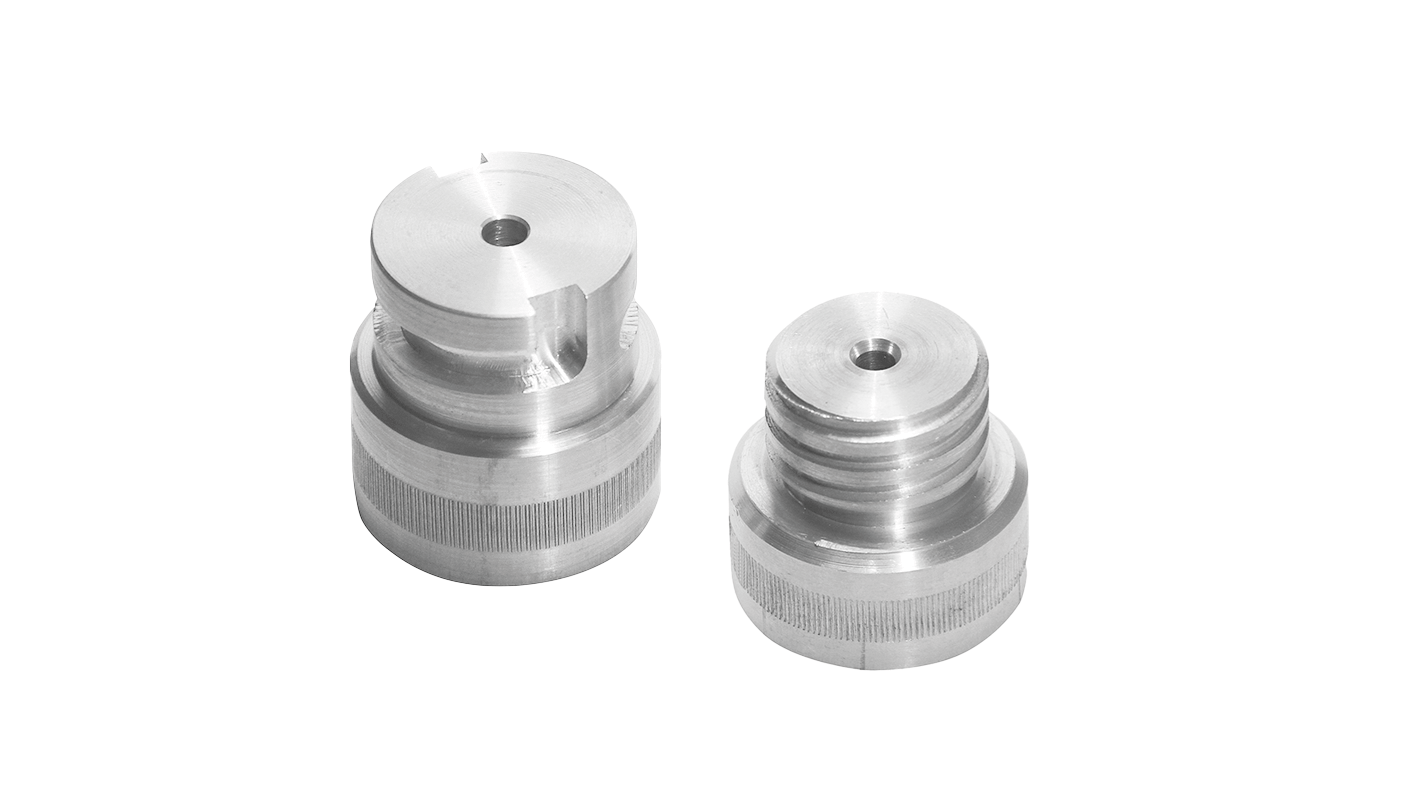

ADAPTER

9915-9916

cod. 9915 – PIZZI/LAMELLO
cod. 0016 – LAMELLO/PIZZI

ASK INFORMATION ABOUT spare parts
